Moduled
Moduled LED modules
An integrated system composed of a LED source, Heat Sink, Driver, Optics and universal mechanics, allowing the same group to be installed in different types of lamps, fitted with a special mounting plate to house the selected module. This solution also proves ideal for the relamping of existing products by supplying the group and relative adaptor. For all products suitable to house this system, the catalogue indicates which groups are compatible with the selected product.
Installation type
LED systems for classic lamps
Seals
Closed-cell neoprene
Screws
Stainless steel A2
Optik distribution
Silicone
Material
Aluminum

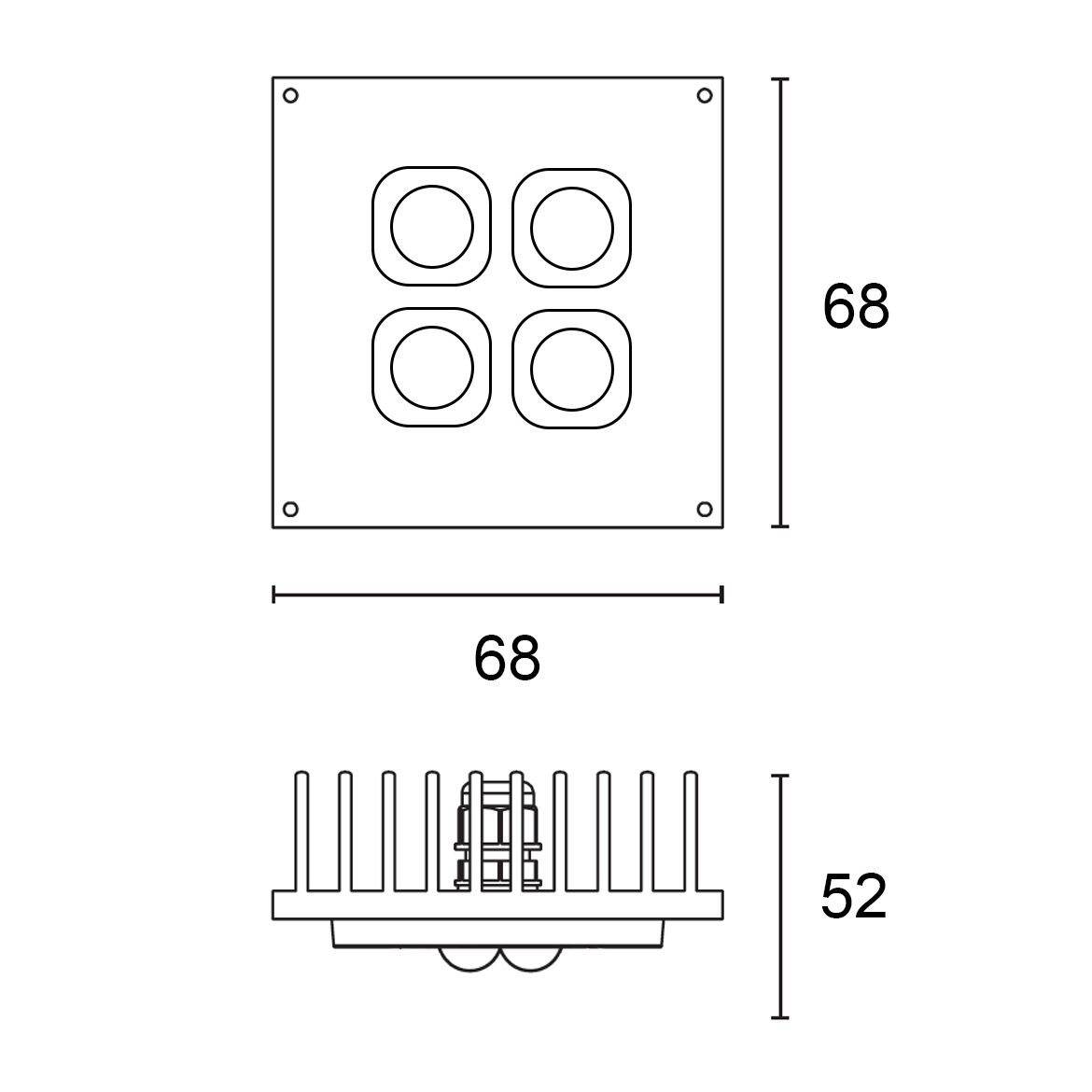

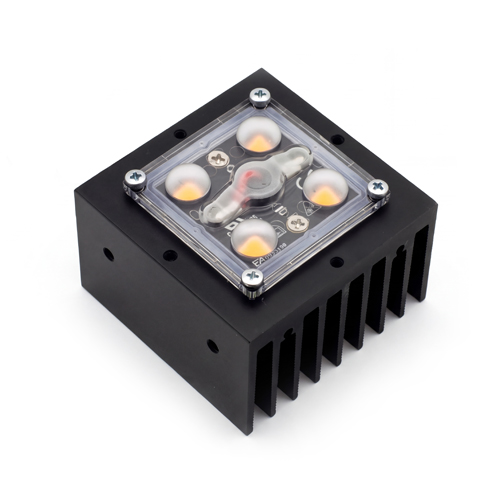

LED "D" system for semiurban use - Basic Version
| Code | Source | Watt | Class | IP |
|---|---|---|---|---|
| D14W/SP50T2 | 14W | II | 66 | |
| D14W/SP50T5 | 14W | II | 66 | |
| D14W/SP50EW | 14W | II | 66 | |
| D14W/HP50T2 | 14W | II | 66 | |
| D14W/HP50T5 | 14W | II | 66 | |
| D14W/HP50EW | 14W | II | 66 | |
| D14W/WP50T2 | 14W | II | 66 | |
| D14W/WP50T5 | 14W | II | 66 | |
| D14W/WP50EW | 14W | II | 66 | |
| D14W/NP50T2 | 14W | II | 66 | |
| D14W/NP50T5 | 14W | II | 66 | |
| D14W/NP50EW | 14W | II | 66 | |
| D20W/SP70T2 | 20W | II | 66 | |
| D20W/SP70T5 | 20W | II | 66 | |
| D20W/SP70EW | 20W | II | 66 | |
| D20W/HP70T2 | 20W | II | 66 | |
| D20W/HP70T5 | 20W | II | 66 | |
| D20W/HP70EW | 20W | II | 66 | |
| D20W/WP70T2 | 20W | II | 66 | |
| D20W/WP70T5 | 20W | II | 66 | |
| D20W/WP70EW | 20W | II | 66 | |
| D20W/NP70T2 | 20W | II | 66 | |
| D20W/NP70T5 | 20W | II | 66 | |
| D20W/NP70EW | 20W | II | 66 | |
| D14W/SD50T2 | 14W | II | 66 | |
| D14W/SD50T5 | 14W | II | 66 | |
| D14W/SD50EW | 14W | II | 66 | |
| D14W/HD50T2 | 14W | II | 66 | |
| D14W/HD50T5 | 14W | II | 66 | |
| D14W/HD50EW | 14W | II | 66 | |
| D14W/WD50T2 | 14W | II | 66 | |
| D14W/WD50T5 | 14W | II | 66 | |
| D14W/WD50EW | 14W | II | 66 | |
| D14W/ND50T2 | 14W | II | 66 | |
| D14W/ND50T5 | 14W | II | 66 | |
| D14W/ND50EW | 14W | II | 66 | |
| D20W/SD70T2 | 20W | II | 66 | |
| D20W/SD70T5 | 20W | II | 66 | |
| D20W/SD70EW | 20W | II | 66 | |
| D20W/HD70T2 | 20W | II | 66 | |
| D20W/HD70T5 | 20W | II | 66 | |
| D20W/HD70EW | 20W | II | 66 | |
| D20W/WD70T2 | 20W | II | 66 | |
| D20W/WD70T5 | 20W | II | 66 | |
| D20W/WD70EW | 20W | II | 66 | |
| D20W/ND70T2 | 20W | II | 66 | |
| D20W/ND70T5 | 20W | II | 66 | |
| D20W/ND70EW | 20W | II | 66 |

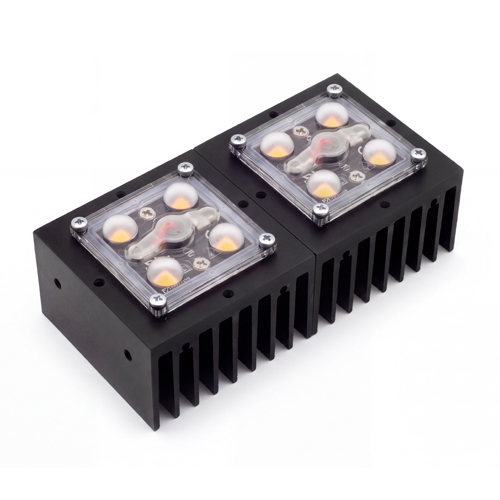

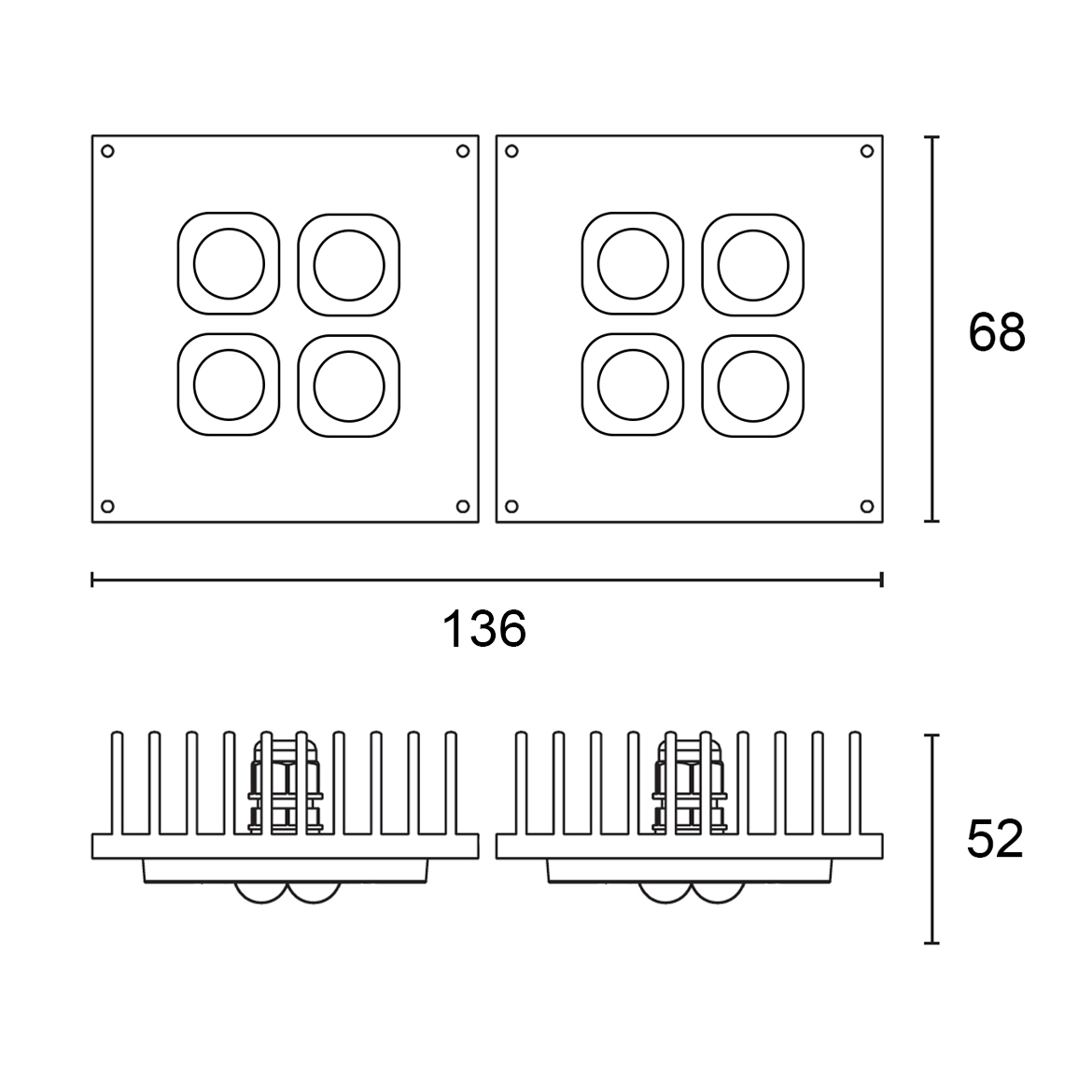

LED "D" system for semiurban use - Advanced Version
| Code | Source | Watt | Class | IP |
|---|---|---|---|---|
| D32W/SD60T2 | 32W | II | 66 | |
| D32W/SD60T5 | 32W | II | 66 | |
| D32W/SD60EW | 32W | II | 66 | |
| D32W/HD60T2 | 32W | II | 66 | |
| D32W/HD60T5 | 32W | II | 66 | |
| D32W/HD60EW | 32W | II | 66 | |
| D32W/WD60T2 | 32W | II | 66 | |
| D32W/WD60T5 | 32W | II | 66 | |
| D32W/WD60EW | 32W | II | 66 | |
| D32W/ND60T2 | 32W | II | 66 | |
| D32W/ND60T5 | 32W | II | 66 | |
| D32W/ND60EW | 32W | II | 66 |

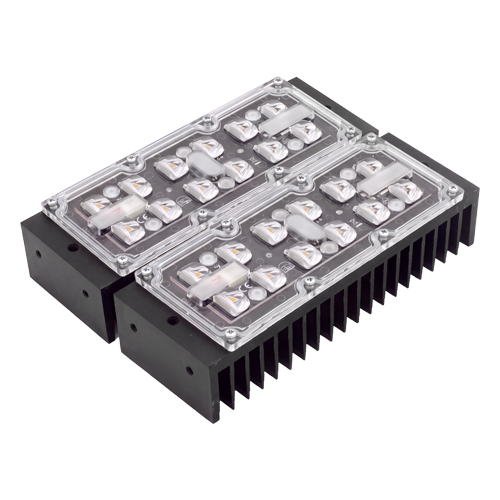

LED "U" system for urban use
| Code | Source | Watt | Class | IP |
|---|---|---|---|---|
| U25W/SD35T2 | 25W | II | 67 | |
| U25W/SD35T5 | 25W | II | 67 | |
| U25W/SD35EW | 25W | II | 67 | |
| U25W/HD35T2 | 25W | II | 67 | |
| U25W/HD35T5 | 25W | II | 67 | |
| U25W/HD35EW | 25W | II | 67 | |
| U25W/WD35T2 | 25W | II | 67 | |
| U25W/WD35T5 | 25W | II | 67 | |
| U25W/WD35EW | 25W | II | 67 | |
| U25W/ND35T2 | 25W | II | 67 | |
| U25W/ND35T5 | 25W | II | 67 | |
| U25W/ND35EW | 25W | II | 67 | |
| U40W/SD50T2 | 40W | II | 67 | |
| U40W/SD50T5 | 40W | II | 67 | |
| U40W/SD50EW | 40W | II | 67 | |
| U40W/HD50T2 | 40W | II | 67 | |
| U40W/HD50T5 | 40W | II | 67 | |
| U40W/HD50EW | 40W | II | 67 | |
| U40W/WD50T2 | 40W | II | 67 | |
| U40W/WD50T5 | 40W | II | 67 | |
| U40W/WD50EW | 40W | II | 67 | |
| U40W/ND50T2 | 40W | II | 67 | |
| U40W/ND50T5 | 40W | II | 67 | |
| U40W/ND50EW | 40W | II | 67 | |
| U60W/SD80T2 | 60W | II | 67 | |
| U60W/SD80T5 | 60W | II | 67 | |
| U60W/SD80EW | 60W | II | 67 | |
| U60W/HD80T2 | 60W | II | 67 | |
| U60W/HD80T5 | 60W | II | 67 | |
| U60W/HD80EW | 60W | II | 67 | |
| U60W/WD80T2 | 60W | II | 67 | |
| U60W/WD80T5 | 60W | II | 67 | |
| U60W/WD80EW | 60W | II | 67 | |
| U60W/ND80T2 | 60W | II | 67 | |
| U60W/ND80T5 | 60W | II | 67 | |
| U60W/ND80EW | 60W | II | 67 |
